Monitoring Ground Control Station 4 Channels HD COFDM NLOS Wireless Receiver

Name: Monitoring Ground Control Station 4 Channels HD COFDM NLOS Wireless Receiver
Brand: Kimpok
Price: 1 USD

Wholesale Monitoring Ground Control Station 4 Channels HD COFDM NLOS Wireless Receiver from china suppliers

Brand Name : Kimpok

Model Number : KP-DRB04

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Power supply : AC220V / DC12V

Video Decoding : H.264

Data encryption : AES

LCD monitor : 17 inch

Size : 520*430*210mm

Weight : 22kg

Contact Now

Monitoring Control Base Station 4 Channels HD COFDM NLOSWireless Receiver

Feature:

1) MPEG-2 video compression, DVD video quality;
2) Modular design and highly integrated
3) 17" Standard samsung LCD screen;
4) Built in with 60G SSD memory;
5) Support 4 channels 48 hours continuously recording;
6) Can support RS485/RS232 and av signals transmission simultaneously;
7) Nobody can steal your video and audio because of its data encryption.
8) NTSC/PAL automatically adapt, support user adjustable;
9) Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;
10) Adjustable working frequency,bandwidth,RF power and etc.
11) COFDM modulation, Stable signal reception;
12) Can custom made with HD/SDI hd interface output;

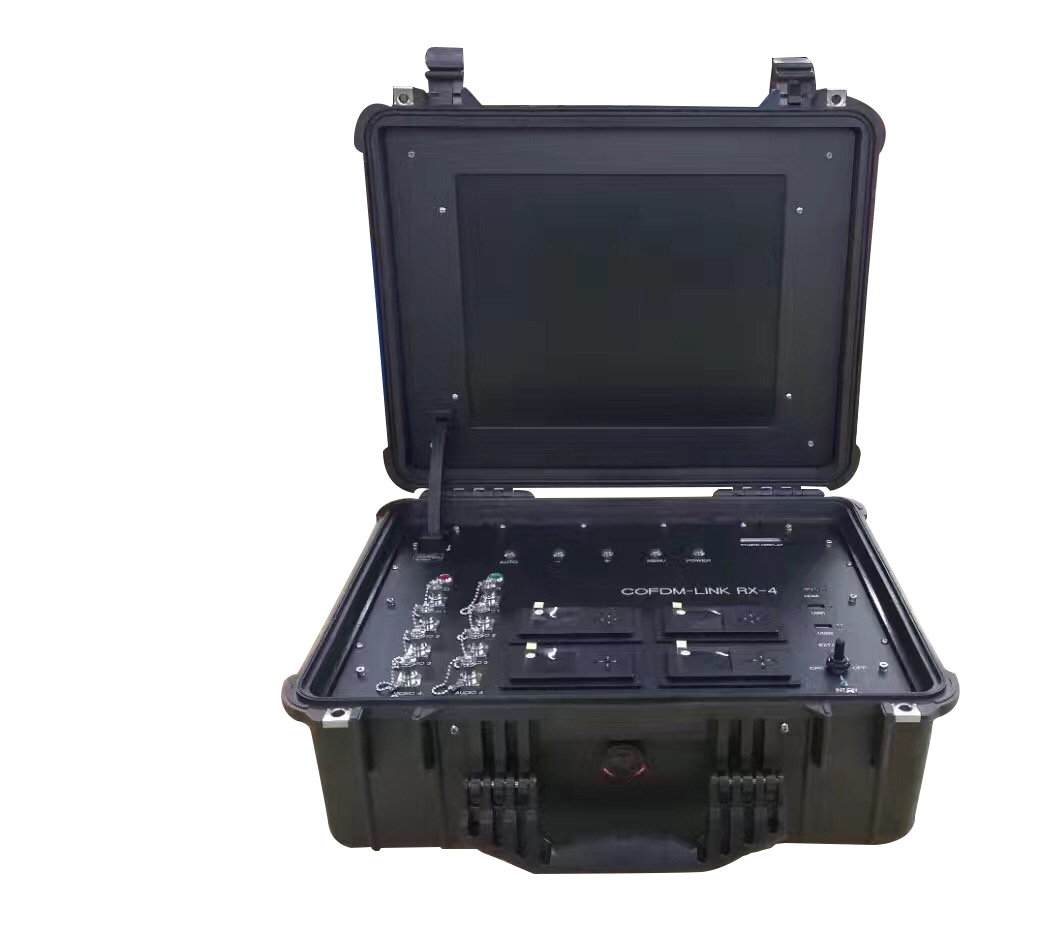

Detailed Image:

Monitoring Ground Control Station 4 Channels HD COFDM NLOS Wireless Receiver

Specification:

Frequency	300-800MHz/1.2G/2.4G/5.8GHz (optional)
Memory	60G/120G, 4 channel 48 hours recording
LCD monitor	17inch
RF Level Input	-105dBm~-20dBm
RF Interface	N(F)
AV output	HD
Modulation	COFDM
Power supply	AC220V / DC12V
Bandwidth	2/2.5/4/8MHz (adjustable)
Constellation	QPSK,16QAM
Data control interface	Standard RS232/RS485/TTL level,9600,8,N,1
RS232/RS485 data interface	Standard RS232/RS485 level, support 1200~115200
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Video Output	1 line PAL/NTSC analog video
Video Decoding	H.264
Resolution	1920*1080, 720P/i
Lines of horizontal	625 or 525 Line
Audio Output	Analog stereo left and right channels
Data encryption	AES128/256bits/ AES user-defined password
Voltage	AC220V±20V, DC14V~DC16V
Work environment	-30~70°
Built in Battery	30000mA, support 4ch 48 hours recording
Size	520430210mm
Weight	22kg

Product Application:

Monitoring Ground Control Station 4 Channels HD COFDM NLOS Wireless Receiver
