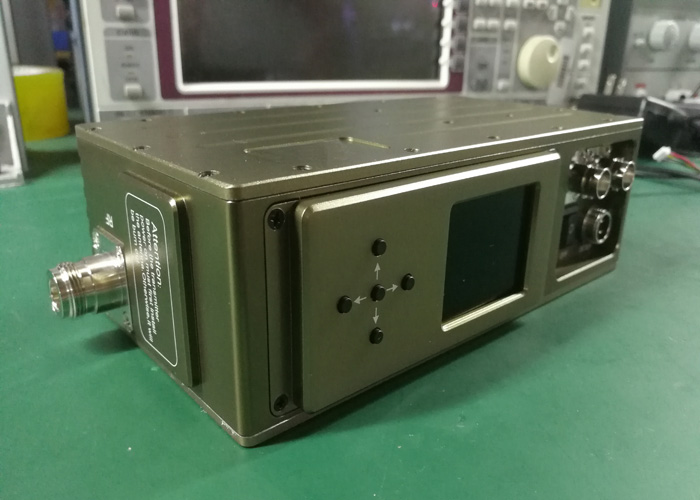

NLOS COFDM Broadcast AV Sender 2W - 5W Adjustable Digital Video Transmitter with Encryption
NLOS Digital Wireless Transmitter Introduction:
This is an exclusive design COFDM transmitter and receiver. Has a character of low power,small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channels receiver, provide high quality of picture in resolution 720P, and short latency.
Transmitter Parameters:
| Frequency | 300-900MHz(adjustable),1.2G/2.4G/5.8GHz(customized) |
| RF output Power | 2-5Watt(adjustable) |
| Voltage | DC12V |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz |
| Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| Transfer rate | 2/4/6/8Mbps(optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Video Input | 1 line PAL/NTSC analog video |
| Audio Input | Analog stereo left and right channels |
| Video Compression | H.264 |
| Data encryption | AES 265 bit / ALLTECH Basic scrambling |
| Flatness | ≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) |
| Carrier | 2K,8K |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| Resolution | 720×576(PAL) , 720×480(NTSC) |
| RF Interface | N(F) |
| Video Format | PAL/NTSC(self-adaption) |
| AV Interface | BNC |
| Built-in battery | 2300mA, 3Hrs |
| Work environment | -30~70° |
| NLOS Distance | 1-3km on ground with obstacles |
| LOS Distance | 100km Max (on helicopter); 6-10km on groud |
| Size | 180*100*60mm |
| Weight | 1444g(net weight) |
Standard one Channel Receiver:
Optional 4 Channels Portable Receiver:
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
