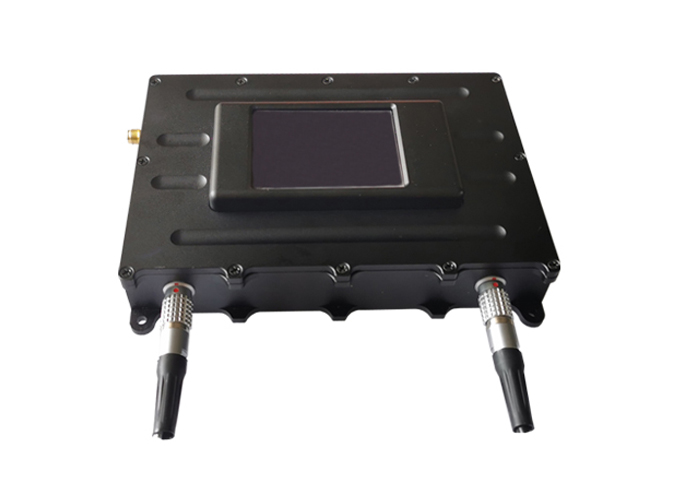

Robot HD COFDM Video Transmitter with 1080P 60FPS 2 Watt RF Power

Name: Robot HD COFDM Video Transmitter with 1080P 60FPS 2 Watt RF Power
Brand: Kimpok technology
Price: 1 USD

Wholesale Robot HD COFDM Video Transmitter with 1080P 60FPS 2 Watt RF Power from china suppliers

Brand Name : Kimpok technology

Model Number : KP-HDT2W-1

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 1,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Modulation : COFDM

RF power : 1-2W adjustable

Encryption : AES128/256bits

Video input : CVBS/HDM-I

Dimension : 132*90*26mm

Weight : 420g

Contact Now

Robot HD COFDM Video Transmitter with 1080P 60FPS 2 Watt RF Power

COFDM Transmitter Introduction:

KP-HDT2W 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.264 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.

Robot Transmitter Features:

COFDM modulation;
Low delay, lightweight, live broadcast;
Support Full-HD quality image;
Support 1080i/1080P HD transission;
Built-in with HDM-I or HD-SDI interface(single selection);
Support composite standard video and balanced audio input;
All parameters can be adjusted by user;

Specification:

Voltage	DC11V~DC16V
Current	≤1.1A/DC12.5V
Video Input	AV: 3.5mm port, connect to standard resolution analog video signal
Video Input	HDM-I/CVBS: support HD1080P,720P,576,480;
Frequency	300mHz-4400mHz (optional)
Bandwidth	2/2.5/4/8MHz(adjustable)
Output power	2 watt (adjustable)
Data encryption	AES 128bit (user-defined password)
Modulation	COFDM
FEC	1/2, 2/3, 3/4, 7/8
Guard Interval	1/32, 1/16, 1/8, 1/4
Video Compression	H.264/MPEG-4
Standard Video Format	PAL/NTSC (auto adaptation)
Parameter control method	Set the related parameters through the control panel
RF Interface	SMA
Working temperature	-20℃~75℃
Transmission distance	1-40km max LOS (on air); 1-2km on ground station
Dimension	1329026mm
Weight	420g

Robot HD COFDM Video Transmitter with 1080P 60FPS 2 Watt RF Power

Our Service

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
